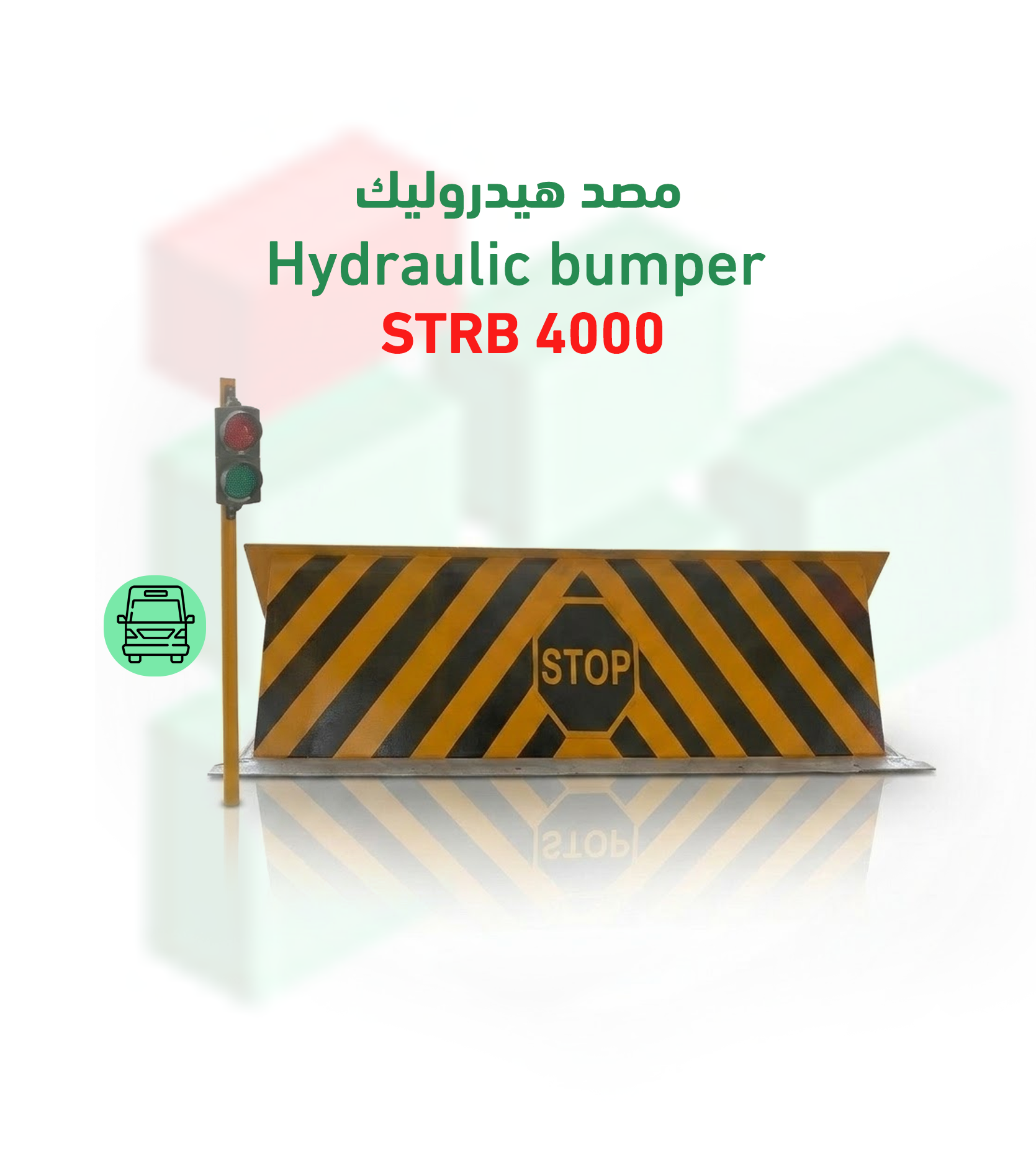

STRB 4000 hydraulic bumper is used to protect security areas from all possible attacks by cars and trucks, and this bumper is commonly installed in customs, ports, prisons, and military bases.
| Specification / Feature | Details |
|---|---|
| Bumper length | 4 meters |
| Bumper height | 80 mm |
| Engine power | 7.5 mechanical horsepower |
| Operating voltage | 380 volts (3 phase) |
| Operating frequency | 50-60 Hz |
| Lifting speed | 3-5 seconds |
| Safety level | Equipped with strong safety controllers against excessive hydraulic loads. |
| Lifting method | By hydraulic cylinders. |
| Electrical control panel | Contains an electrical panel and switches dedicated to controlling the bumper’s raising and lowering movement. |
| LED lighting | Equipped with a specialized LED strip for good lighting at night to protect against potential collision accidents. |
| Manual control | Manual control of raising and lowering the bumper with a hand pump located inside the bumper. |
| Fast lifting time | Lifting time does not exceed 3 seconds, with a good height of up to 500 mm. |
| Tremendous hardness | Withstands sudden collision accidents without exposure to breakage or cracking, as the steel thickness ranges between 8-11 mm. |
| Available widths | Available in different widths, ranging from 3-7 meters. |
| Heat and water resistant coating | Equipped with a special heat and water-resistant coating that reflects lights at the same time. |
| PLC controller | Contains a PLC controller that can be programmed to change start and stop orders at any time. |
How to install a hydraulic bumper STRB 4000؟
A water lifting station is installed under the bumper, and its mission is to lift and expel rainwater that collects under the bumper.
The hydraulic lifting units are installed under the bumper, and then the bumper body is fixed.
Do not hesitate to order the STRB 4000 hydraulic bumper, which takes a maximum of 10-20 days to be ready for use.
